PH-2723


The PH-2723 is a large format throat high frequency horn. The 2 inch (50 mm) design is optimized for high pressure mid band response. The PH-2723 is compatible with a variety of P.Audio PreNeo and BMD series professional compression drivers. The rated coverage angles of 60 for medium to long throw high output applications. Because the 2 inch throat diameter is an industry standard, the PH-2723 may be used with many competitive compression drivers as well.

The horn construction is a high impact ABS with glass filling to provide superior structural support for the compression driver. The PH-2723 is designed for use in high output professional sound reinforcement systems where long throw is specified. The horn is also ideal for applications where very specific acoustic coverage areas are specified. Excellent acoustic loading allows the horn to be used to below 1000Hz.

The PH-2723 may be used with the following P.audio professional compression drivers. (or any industry standard compatible driver ) - BM-D750 - PreNeo-750N

GENERAL SPECIFICATIONS

  Nominal Coverage Angle
  (H° X V°) - 6 dB.
  60° x 40°

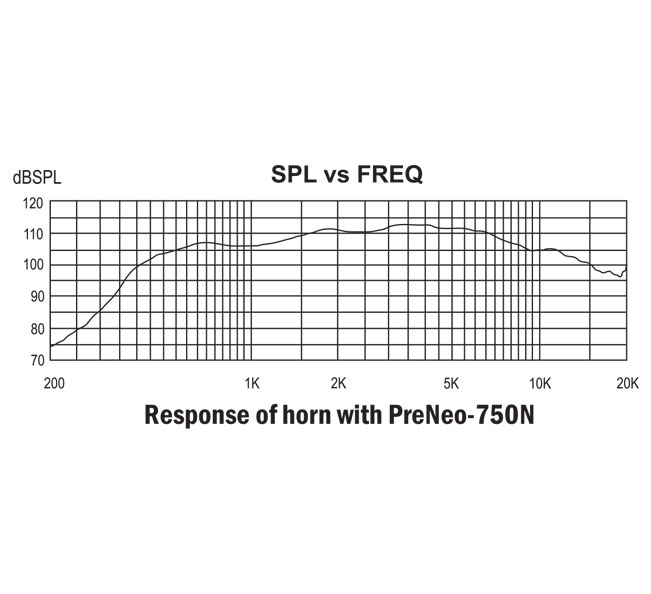

  Cut Off Frequency   500 Hz
  Thorat Diameter   2.0 inch (50mm)
  Mounting Type   BOLT ON
  Construction   Injected Polymer A.B.S.
  with glass fiber filled
  Black Polycabonate

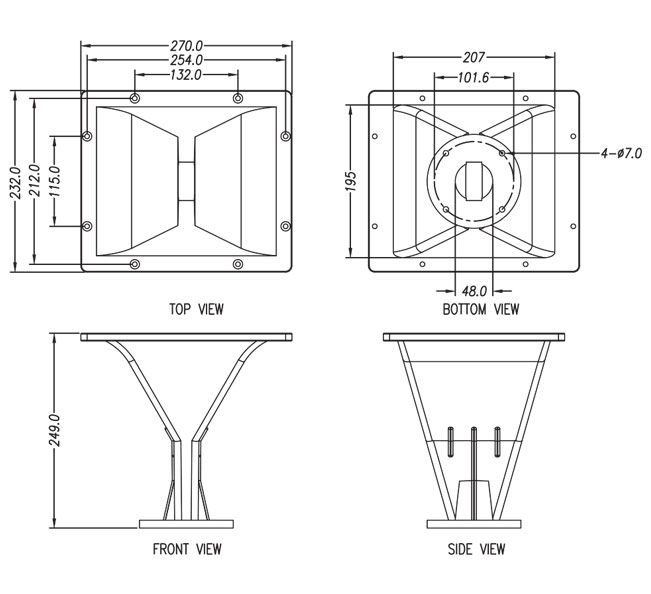

  Rear Height   196mm
  Rear Width   207mm
  Mount Height   232mm
  Mount Width   270mm
  Length   249mm
  Baffle Cutout Dimension   198mm x 210mm
  7.79" x 8.26"
  Net Weight   0.92kg (2.02 lbs)
  Shipping Weight   1.41kg (3.10 lbs)
  Packing Dimension   290 mm x 252 mm x 300mm
  11.41" x 9.92" x 11.81"

PH-2723


The PH-2723 is a large format throat high frequency horn. The 2 inch (50 mm) design is optimized for high pressure mid band response. The PH-2723 is compatible with a variety of P.Audio PreNeo and BMD series professional compression drivers. The rated coverage angles of 60 for medium to long throw high output applications. Because the 2 inch throat diameter is an industry standard, the PH-2723 may be used with many competitive compression drivers as well.

The horn construction is a high impact ABS with glass filling to provide superior structural support for the compression driver. The PH-2723 is designed for use in high output professional sound reinforcement systems where long throw is specified. The horn is also ideal for applications where very specific acoustic coverage areas are specified. Excellent acoustic loading allows the horn to be used to below 1000Hz.

The PH-2723 may be used with the following P.audio professional compression drivers. (or any industry standard compatible driver ) - BM-D750 - PreNeo-750N
