TH-300

The P.Audio TH-300 is a very high output paging system that features 4 PA-D110 compression drivers in a manifold configuration. This configu-ration allows the 4 drivers to sum into the TH-300 reentrant wide range horn. The TH-300 is rated for a program power of a full 300 watts and con-tinuous operation of 200 watts.

The system has been subjected to accelerated life tests for over 100 hours of non-stop operation. This reliability and power handling allow the TH-300 to produce over 130dB of sound pressure level at one meter. This provided excellent throw in large spaces.

The TH-300 has a rated bandwidth of 200Hz to 7 kHz and is ideal for both vocal fundamentals as well as critical vocal harmonics. The extended band-width provides excellent intelligibility and vocal clarity. The TH-300 is avai-lable in either 8 ohm or 16 ohm versions. The 16 ohm version is ideal for applications where multiple TH-300 paging systems are specified in parallel for larger coverage applications. The system is provided with an integral mounting bracket for fast and easy installation.

The TH-300 is weather resistant and ideal for use in both outdoor and indoor applications where voice range paging is required. The TH-300 is a large format design designed for high power and high sound pressure level applications.

Download Specification Sheet

GENERAL SPECIFICATIONS

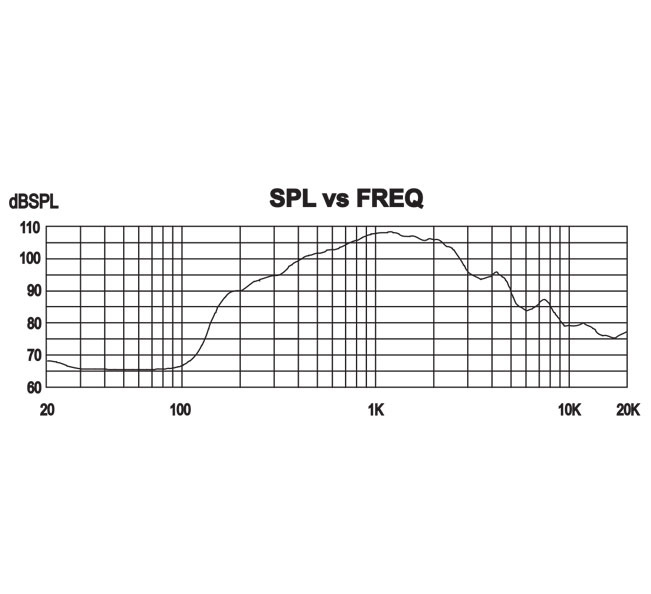

  Frequency Response (-10dB)   65Hz-20kHz
  Sensitivity (1w/1m)   92dB
  Maximum Peak SPL   122dB
  Dispersion (H X V)   90° X 65°
  LF Components   8" Woofer
  HF Components   1" Compression Driver
  Connections   2 X Speakon Connectors
  Power Handling   200w Continuous
  400w Program
  800w Peak
  Net Weight   10 kg / 22 lbs
  Dimension WxDxH   429 x 246 x 275 (mm)
  16.9 x 9.7 x 10.8 (in)

FEATURES

  • 800 Watts Peak Power Handling
  • High Sesitivity
  • 90 X 65 Acoustic Dispersion / Elliptic Wave Guide
  • Very High Intelligibility

OPTIONAL ACCESSORIES

  • External "U" Bracket
  • Standard 35mm Pole mount to combine with subwoofer

APPLICATIONS

  • Very Compact Sound Reinforcement
  • Fixed Install
  • Portable Public Address
